Continuous Heat Shrink Tubing

Cost Effective - Consistent - Quality

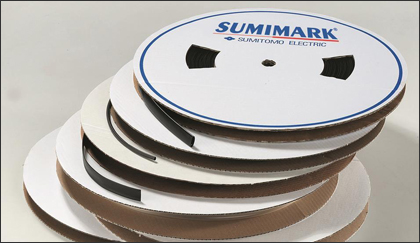

Sumimark Continuous Heat Shrink Tubing
Wire identification
Wire protection
Fluid resistance
Strain relief
Abrasion protection
RoHS compliant

Continuous Heat Shrink Tubing

Sumimark tubing is available in a wide range of types including general purpose polyolefins, dual wall tubings, high temperature PVDF and flouroelastomers.

Sumimark tubing is made to the highest quality standards in the industry.

In addition to providing strain relief and insulation, it provides an excellent surface on which to mark.

Sumimark tubing is supplied on continuous spools, allowing you to create the exact length of marker needed, with no waste, resulting in tremendous cost savings.

Diameters of 1/16" to 2" with shrink ratios of 2:1, 3:1 and 4:1 are available. There is minimal longitudinal change after shrinking, so marks will not become distorted when installed.

Sumimark tubing is available in black, white and colors and meet the respective military and commercial specifications (AMSDTL23053, UL, VW1, CSA).

All Sumimark tubing products are RoHS compliant for minimal environmental impact.

Request Product Samples » Request a Free Quote »

Features

Please refer to the following chart when making your selection.
Click on the SM3 part number link to view complete data sheet for each product.

SM3-12

Flexible Polyolefin 2:1, AMS-DTL-23053/5, Class 1 & 3

SM3-13

Flexible Clear Polyolefin 2:1, AMS-DTL-23053/5, Class 2

SM3-16

Flexible Chlorinated Polyolefin 2:1, AMS-DTL-23053/1, Class 1 & 2

SM3-23

Flexible Overexpanded Polyolefin 3:1

SM3-24

Adhesive Lined Flexible DualWall Polyolefin 2:1, AMS-DTL-23053/4, Class 2

SM3-25

Flame Retarded Dual Wall Polyolefin Adhesive, inner wall 3:1, AMS-DTL-23053/4, Class 3

SM3-31

Very Flexible Polyvinylidene Fluoride 2:1, AMS-DTL-23053/18, Class 3

SM3-34

Very Flexible Non-Halogen Polyolefin 2:1

SM3-39

Medical Grade Flexible Polyolefin

SM3-41

Flexible Overexpanded Polyolefin 4:1, AMS-DTL-23053/5, Class 1

SM3-60

Very Flexible Fluoroelastomer 2:1, AMS-DTL-23053/13

SM-CM

Crosslinked Polyolefin Cable Marker Tag
