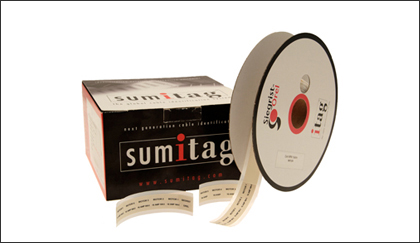

RPXC Raised Panel

The Sumitag RPXC Raised Panel Label is specifically designed for the marking of instrument panels, control panels, electrical cabinets and racks.

They are made from zero halogen, low toxicity, self-extinguishing radiation crosslinked UV stabilized polyolefin sheet using OSNH grade material.

It is mostly used for mass transit and underground applications where human life is critical as it features extended fire safety standard properties.

The Raised Panel Labels are supplied on rolls for thermal transfer printing, which means production, storage and picking is easy and convenient.

The adhesive is crosslinked and contains no Halogen or Sulphur and no nitrogen used in radical initiators.

Data Sheet » Request Product Samples »

Features

• Flame retardant, self-extinguishing
• Low smoke, zero halogen
• UV stable
• Very good adhesion
• Good ageing resistance
• Extensive resistance to chemicals
• Colors - white, yellow and silver as standard

Standards

• EN45545 (HL1, HL2 & HL3)
• LUL 1-085
• LUL 2-01001-002 (E1042A6)
• BS6853 Cat. 1a
• BS 4G198, Part 3, Type 15
• DEF STAN 59-97, Type 8
